SIMPSON STRONG-TIE
1/4" x 1-7/8" TITENHD - 20/Pack
SKU
Model Number
THDB25178HC20
$135.73

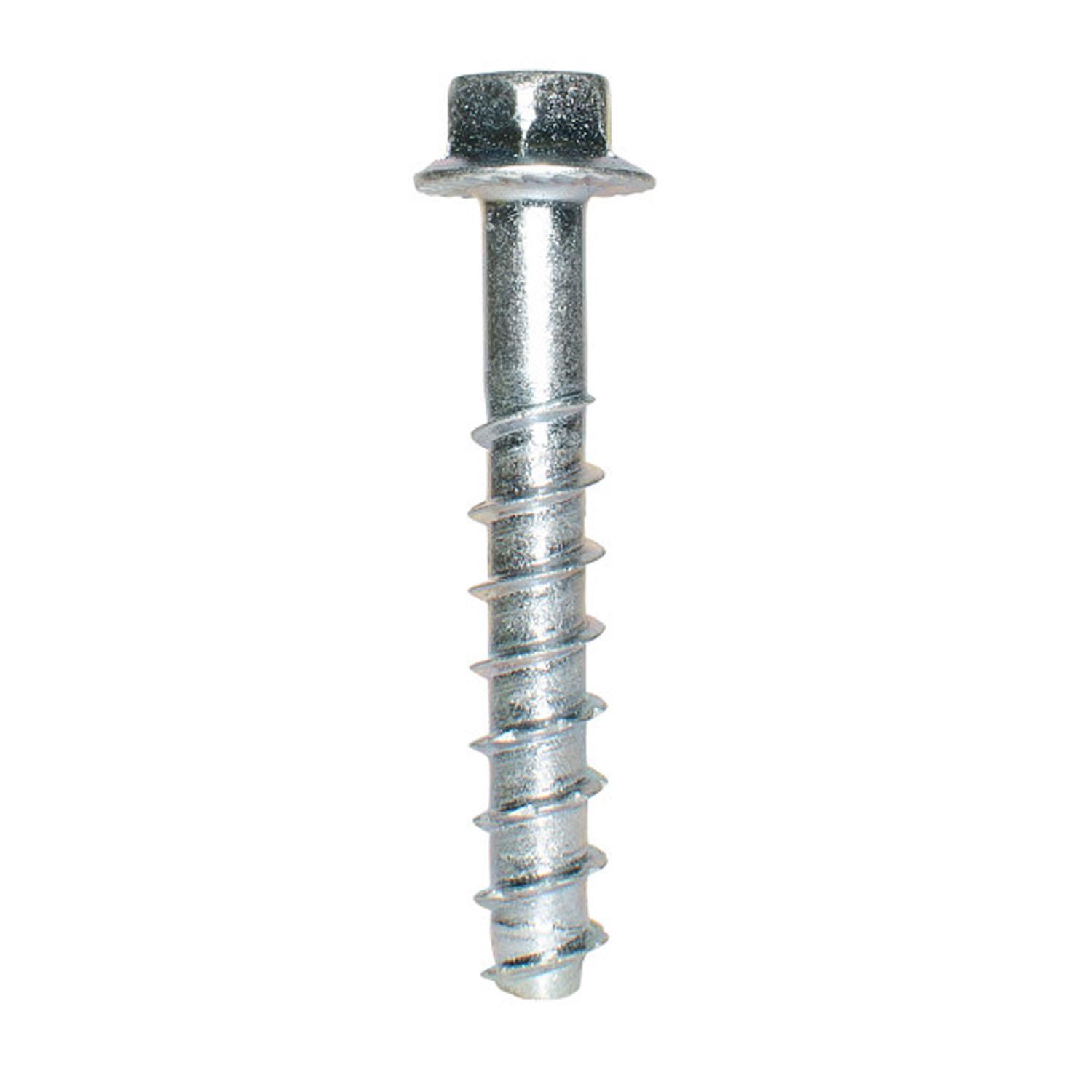

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
See Full Details
Pickup at
Select Store
Free
Unavailable
Delivery
Unavailable
Need More?
Note: To pick up at a different store, you will need to change your store location.
Available Delivery Options:
Get it by
Note: Full Delivery Options available in Checkout. See exact dates and fees during checkout.
Item is No Longer Available for Delivery
Need More?
Note: To pick up at a different store, you will need to change your store location.
Find in store at
Not available in store at
Select Store
in Stock
Product Details
About this Product
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Product Information
SKU # 1712641
Model # THDB25178HC20
Specifications
Assembled Depth (in)
0.56 in
Assembled Height (in)
2.22 in
Assembled Width (po)
0.56 in
General |
|
|---|---|
| Head Type | Hex Washer |
| Target Use/Application | Concrete & Masonry |
| Material | Carbon Steel |
| Application Strength | Heavy- Duty |
| Brand | Simpson Strong-Tie |
| Country of Origin | China |
| Drive Type | Hammer/Hex |
| Finish | Zinc Plated |
Dimensions |
|
|---|---|
| Diameter | 1/4 inch |
| Drill Size (in) | 1/4 |
Warranty Information
