    IMPERIAL MANUFACTURING GROUP

    4" x 25' Silver Insulated Air Duct

    SKU
    $96.99

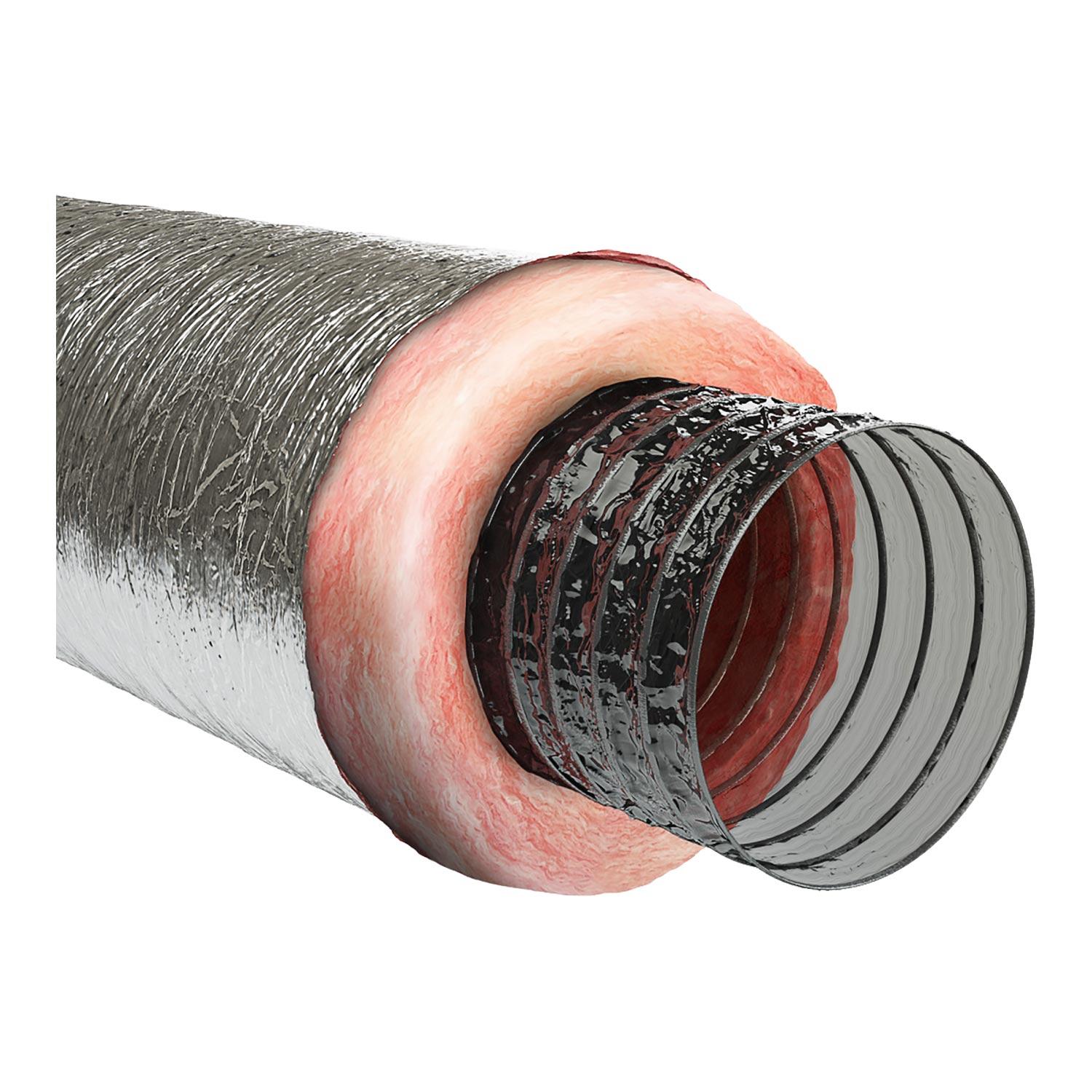

    This is a silver-colored air duct that is designed to be strong and durable. It has a metallic outer layer reinforced with fiberglass and a two-layer black polyester inner core. This design makes it more resistant and long-lasting. The air duct can operate in temperatures ranging from -20 to 140 degrees Fahrenheit when the pressure is at 6 inches of water, and from -20 to 180 degrees Fahrenheit when the pressure is at 2 inches of water. The maximum flame spread is 25 and the maximum smoke development is 50, meaning it has a low risk of spreading flames and producing smoke. This air duct is UL listed.
    See Full Details
    Pickup at
    Select Store
    Delivery to
    Note: To pick up at a different store, you will need to change your store location.
    Available Delivery Options:
    Note: Full Delivery Options available in Checkout. See exact dates and fees during checkout.
    Item is No Longer Available for Delivery
    Check All Other Stores
    Note: To pick up at a different store, you will need to change your store location.
    Find in store at Not available in store at Select Store
    in Stock
    Product Details

    About this Product

    This is a silver-colored air duct that is designed to be strong and durable. It has a metallic outer layer reinforced with fiberglass and a two-layer black polyester inner core. This design makes it more resistant and long-lasting. The air duct can operate in temperatures ranging from -20 to 140 degrees Fahrenheit when the pressure is at 6 inches of water, and from -20 to 180 degrees Fahrenheit when the pressure is at 2 inches of water. The maximum flame spread is 25 and the maximum smoke development is 50, meaning it has a low risk of spreading flames and producing smoke. This air duct is UL listed.

    Highlights

    • Designed for wherever UL-181 standards for Class 1 air duct is required
    • The 2-ply polyester laminated inner core provides outstanding resistance and durability
    • The fiberglass reinforced metalized outer jacket is extremely strong and will not unravel
    • Operating pressure 10 in H2O (2.5 kPa) intermittent positive, 6 in H2O (1.5 kPa) continuous positive and 2 in H2O (0.5 kPa) negative. Operating temperature range of 6 in H2O (1.5 kPa) positive is -20 to 140 deg F, 2 in H2O (0.5 kPa) positive of -20 to 180 deg F and 1/2 in H2O (0.13 kPa) positive 250 def F max
    • Perfect for use with heating, ventilation and air conditioning systems

    Product Information

    SKU # 1014545

    Model # MEA-0425

    Specifications

    Assembled Depth (in)

    0

    Assembled Height (in)

    0

    Assembled Width (po)

    0

    Weight (kg)

    3.31 kg

    Specifications General
    Gauge 0.26 mm
    Insulated Yes
    Brand Imperial Manufacturing Group
    Construction Flexible
    Design Industrial
    Feature Bullets
    • Designed for wherever UL-181 standards for Class 1 air duct is required
    • The 2-ply polyester laminated inner core provides outstanding resistance and durability
    • The fiberglass reinforced metalized outer jacket is extremely strong and will not unravel
    • Operating pressure 10 in H2O (2.5 kPa) intermittent positive, 6 in H2O (1.5 kPa) continuous positive and 2 in H2O (0.5 kPa) negative. Operating temperature range of 6 in H2O (1.5 kPa) positive is -20 to 140 deg F, 2 in H2O (0.5 kPa) positive of -20 to 180 deg F and 1/2 in H2O (0.13 kPa) positive 250 def F max
    • Perfect for use with heating, ventilation and air conditioning systems
    Dimensions Dimensions
    Duct Size (in) 4 x 300
