    6" 90 Degree Corner Half Block

    SKU
    $34.79

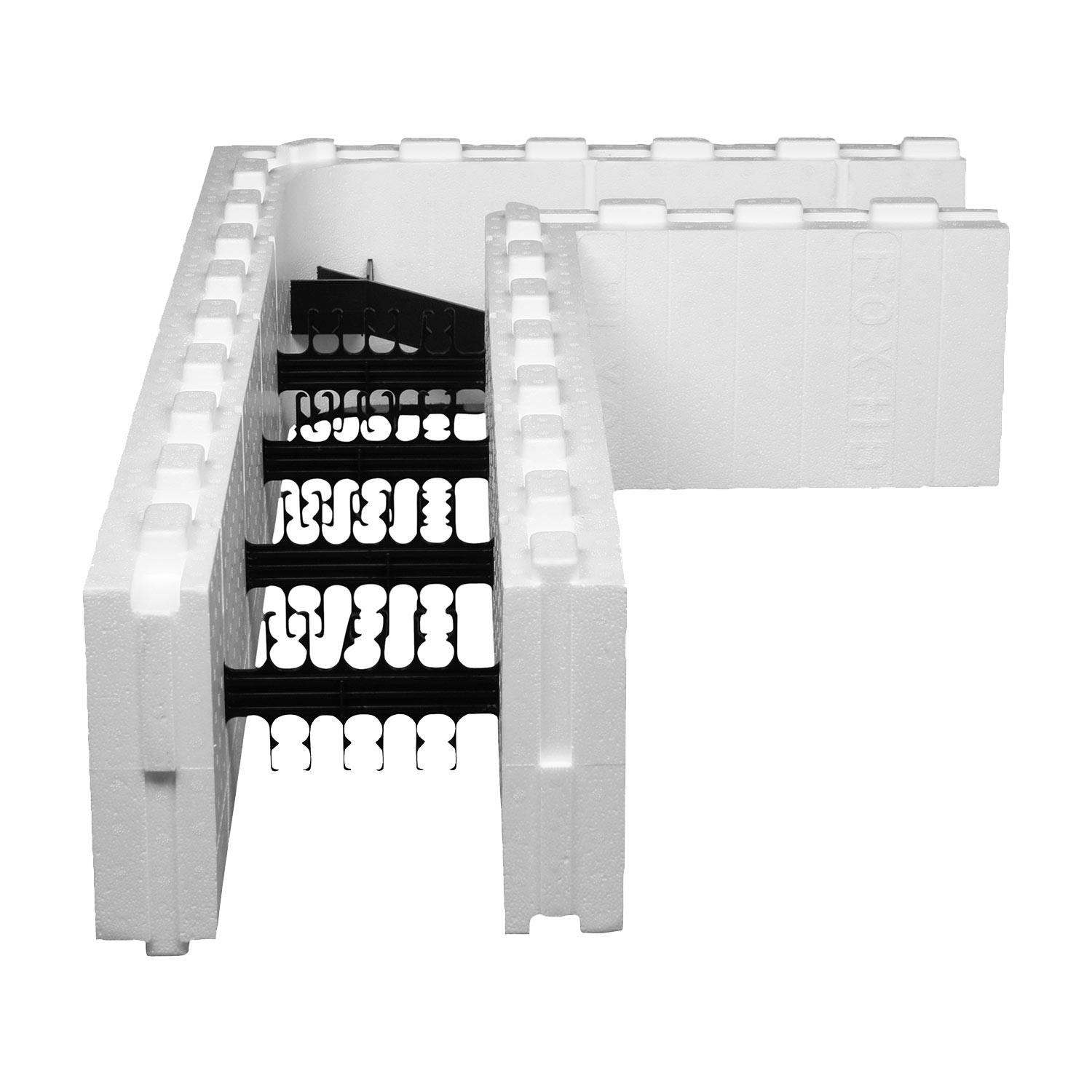

    The 90 degree corner block typically makes up 10-15% of the ICF wall assembly on most residential & commercial jobs. This block has six (6) strong full length injection molded plastic ties made from Polypropylene (PP) regrind resin that are well marked with the word “Fox Blocks” located on both sides of the block. The corner block also has one (1) patent pending corner bracket designed like no other in the ICF Industry. This 7/32" thick x 1-1/2" wide corner bracket was engineered to add more strength/support to the block because it connects the inner/outer 1.5 PCF density modified Expanded Polystyrene (EPS) foam panels together and is designed with a round through hole in the outer panel for the installation of a 3/4" PVC or metal pipe to reinforce the corner once the wall is built to eliminate blow-outs during the concrete pour.
    See Full Details
    Pickup at
    Select Store
    Delivery to
    Note: To pick up at a different store, you will need to change your store location.
    Available Delivery Options:
    Note: Full Delivery Options available in Checkout. See exact dates and fees during checkout.
    Item is No Longer Available for Delivery
    Check All Other Stores
    Note: To pick up at a different store, you will need to change your store location.
    Find in store at Not available in store at Select Store
    in Stock
    Product Details

    About this Product

    The 90 degree corner block typically makes up 10-15% of the ICF wall assembly on most residential & commercial jobs. This block has six (6) strong full length injection molded plastic ties made from Polypropylene (PP) regrind resin that are well marked with the word “Fox Blocks” located on both sides of the block. The corner block also has one (1) patent pending corner bracket designed like no other in the ICF Industry. This 7/32" thick x 1-1/2" wide corner bracket was engineered to add more strength/support to the block because it connects the inner/outer 1.5 PCF density modified Expanded Polystyrene (EPS) foam panels together and is designed with a round through hole in the outer panel for the installation of a 3/4" PVC or metal pipe to reinforce the corner once the wall is built to eliminate blow-outs during the concrete pour.

    Highlights

    • 2-5/8" EPS for consistent R-Value
    • Extra tie on each end for strength
    • Reversible - same block for right or left corner
    • Includes six full-length plastic ties made from polypropylene (PP) regrind resin
    • Type 2 density

    Product Information

    SKU # 1036900

    Model # FOX-EC690HB

    Specifications

    Assembled Depth (in)

    11.25 in

    Assembled Height (in)

    8 in

    Assembled Width (po)

    64 in

    Weight (kg)

    46.27 kg

    Specifications General
    Insulation Type Expanded Polystyrene Insulation
    Application Type/Use Foundation Wall
    Brand Fox Blocks
    Country of Origin Canada/United States
    Density Type 2
    Faced/Unfaced Unfaced
    Feature Bullets
    • 2-5/8" EPS for consistent R-Value
    • Extra tie on each end for strength
    • Reversible - same block for right or left corner
    • Includes six full-length plastic ties made from polypropylene (PP) regrind resin
    • Type 2 density
