    SOUTHWIRE

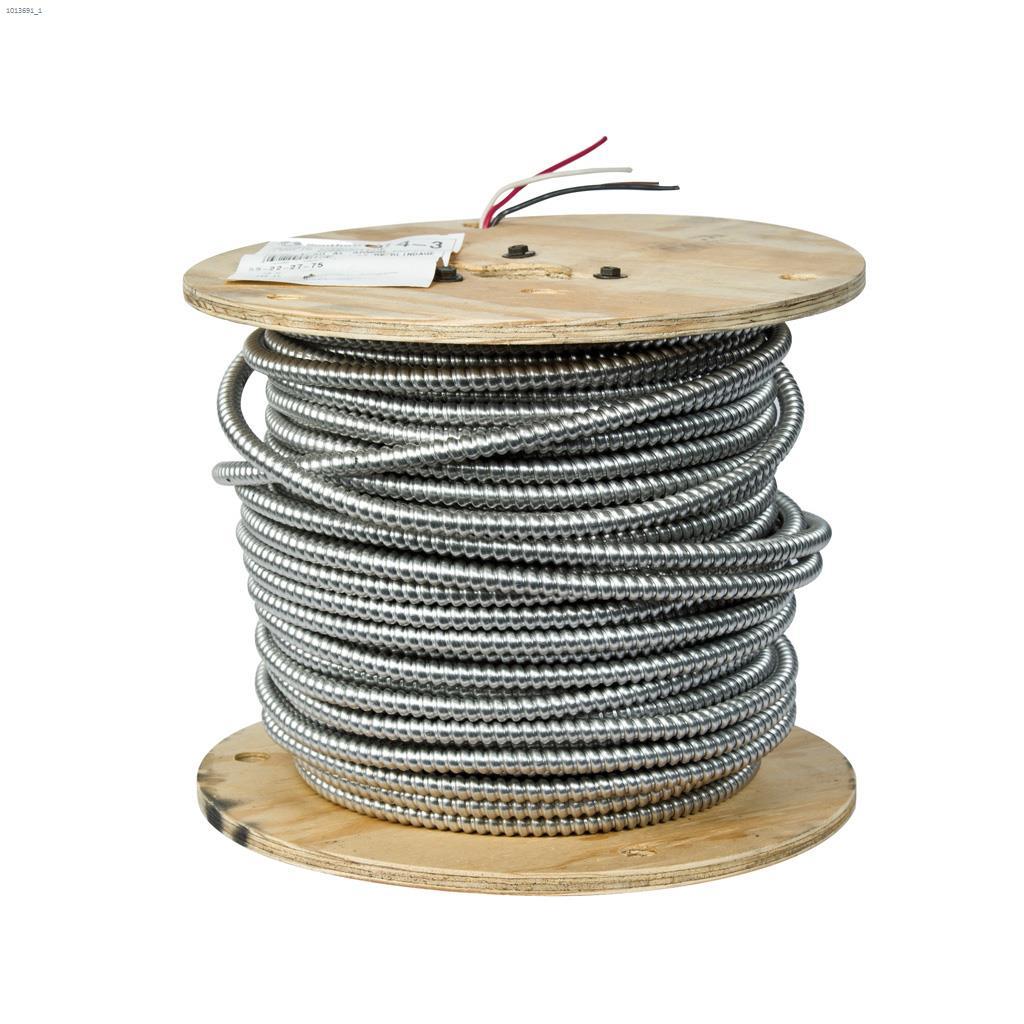

    AC90 14/3 75M Armoured Cable

    SKU
    $265.00
    The AC90-14/3 75M Armoured Cable is suitable for use in cable troughs and ventilated flexible cableways in dry locations. It is CSA approved with a voltage rating of 600 volts, making it perfect for electrical power applications. This cable is designed to insulate effectively, ensuring safety and durability in challenging conditions.
    See Full Details
    Pickup at
    Select Store
    Delivery to
    Note: To pick up at a different store, you will need to change your store location.
    Available Delivery Options:
    Note: Full Delivery Options available in Checkout. See exact dates and fees during checkout.
    Item is No Longer Available for Delivery
    Check All Other Stores
    Note: To pick up at a different store, you will need to change your store location.
    Find in store at Not available in store at Select Store
    in Stock
    Product Details

    About this Product

    The AC90-14/3 75M Armoured Cable is suitable for use in cable troughs and ventilated flexible cableways in dry locations. It is CSA approved with a voltage rating of 600 volts, making it perfect for electrical power applications. This cable is designed to insulate effectively, ensuring safety and durability in challenging conditions.

    Highlights

    • Length: 246', with an overall diameter of 0.54"
    • Aluminium armour material providing strong protection
    • Contains three solid copper conductors
    • Nylon/PVC insulation material with a thickness of 0.03"
    • Temperature range from -25 to 90°C, suitable for many building environments

    Product Information

    SKU # 1013691

    Model # 0143-75

    Specifications

    Assembled Depth (in)

    0

    Assembled Height (in)

    0

    Assembled Width (po)

    0

    Weight (kg)

    13.15 kg

    Specifications General
    Gauge 14
    Insulated Yes
    Insulation Material Nylon/PVC
    Insulation Thickness 0.03 inch
    Grounded No
    Amperage Rating 20 Amp at 60 deg C, 25 Amp at 75 deg C, 30 Amp at 90 deg C
    Application Type/Use Interior
    Armour Material Aluminum
    Brand Southwire
    Certifications and Listings CSA Approved
    Conductor Stranding Solid
    Damp/Wet Rating Dry Only
    Feature Bullets
    • Length: 246', with an overall diameter of 0.54"
    • Aluminium armour material providing strong protection
    • Contains three solid copper conductors
    • Nylon/PVC insulation material with a thickness of 0.03"
    • Temperature range from -25 to 90°C, suitable for many building environments
