WATTS WATER TECHNOLOGIES
Temperature Pressure Relief Valve
SKU
Model Number
0066166
SAVE 15%
$19.54
$22.99
$22.99

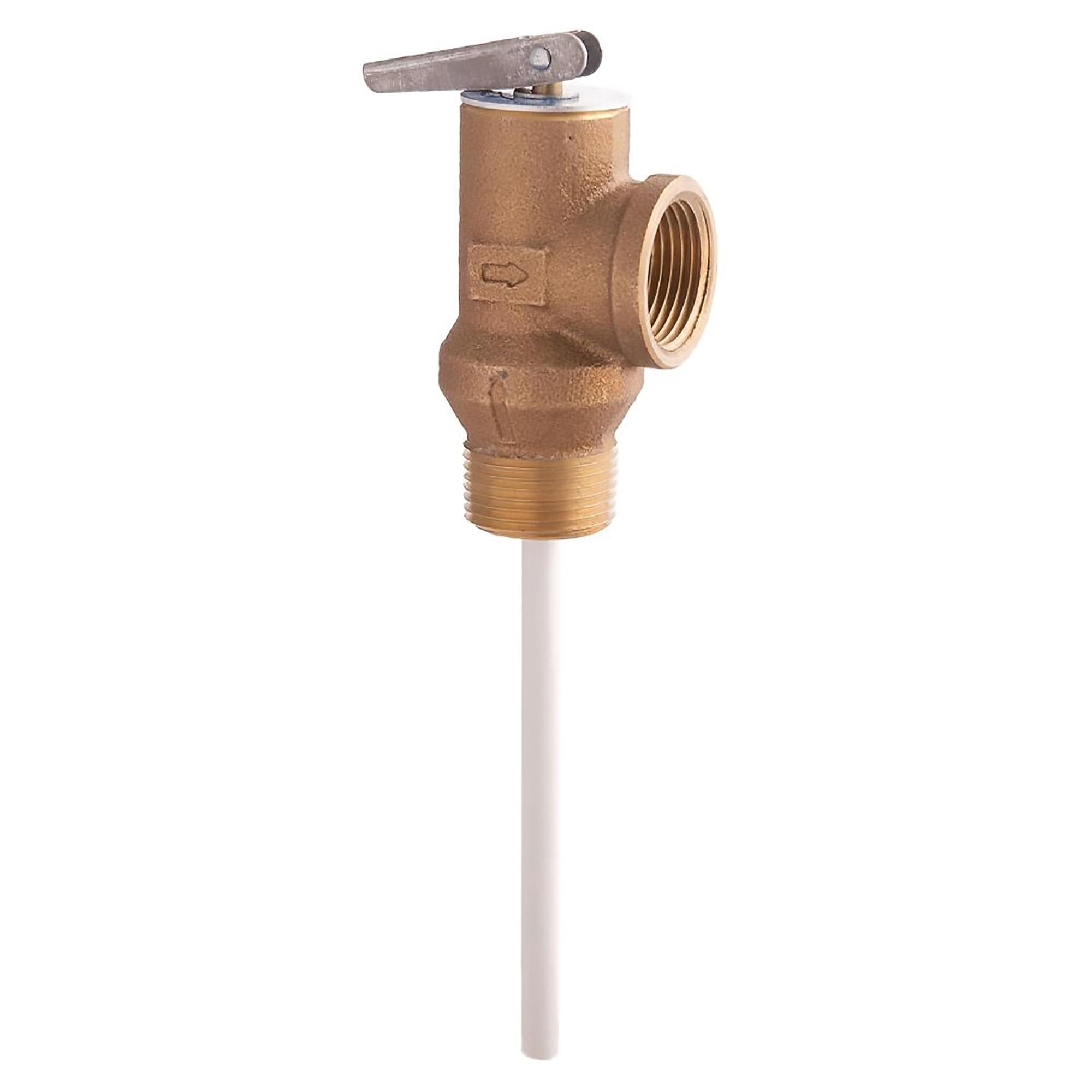

This combined 2-in-1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. It provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. This valve is furnished with a test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. The temperature sensing element must be immersed in the water within the top 6 inches (152mm) of the tank. It has a male inlet and a female outlet. Temperature relief is at 210 degrees F (99 degrees C). Standard settings are 75, 100, 125 and 150 psi (5.3, 7.0, 8.8, 10.6 bar).
See Full Details
Pickup at
Select Store
Free
Unavailable
Delivery
Unavailable
Need More?
Note: To pick up at a different store, you will need to change your store location.
Available Delivery Options:
Get it by
Note: Full Delivery Options available in Checkout. See exact dates and fees during checkout.
Item is No Longer Available for Delivery
Need More?
Note: To pick up at a different store, you will need to change your store location.
Find in store at
Not available in store at
Select Store
in Stock
Product Details
About this Product
This combined 2-in-1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. It provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. This valve is furnished with a test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. The temperature sensing element must be immersed in the water within the top 6 inches (152mm) of the tank. It has a male inlet and a female outlet. Temperature relief is at 210 degrees F (99 degrees C). Standard settings are 75, 100, 125 and 150 psi (5.3, 7.0, 8.8, 10.6 bar).
Highlights
- Temperature safeguard at 99°C (210°F)
- Sturdy bronze construction to avoid leaks
- Standard pressure options: 75, 100, 125 and 150 PSI
- Warranty provided for 1 year
- Perfect for plumbing needs
Product Information
SKU # 1038123
Model # 0066166
Specifications
Assembled Depth (in)
2.5 in
Assembled Height (in)
7.75 in
Assembled Width (po)
1.5 in
Weight (kg)
0.26 kg
General |
|
|---|---|
| Brand | Watts Water Technologies |
| Colour | 0 |
| Country of Origin | United States |
| Feature Bullets |
|
